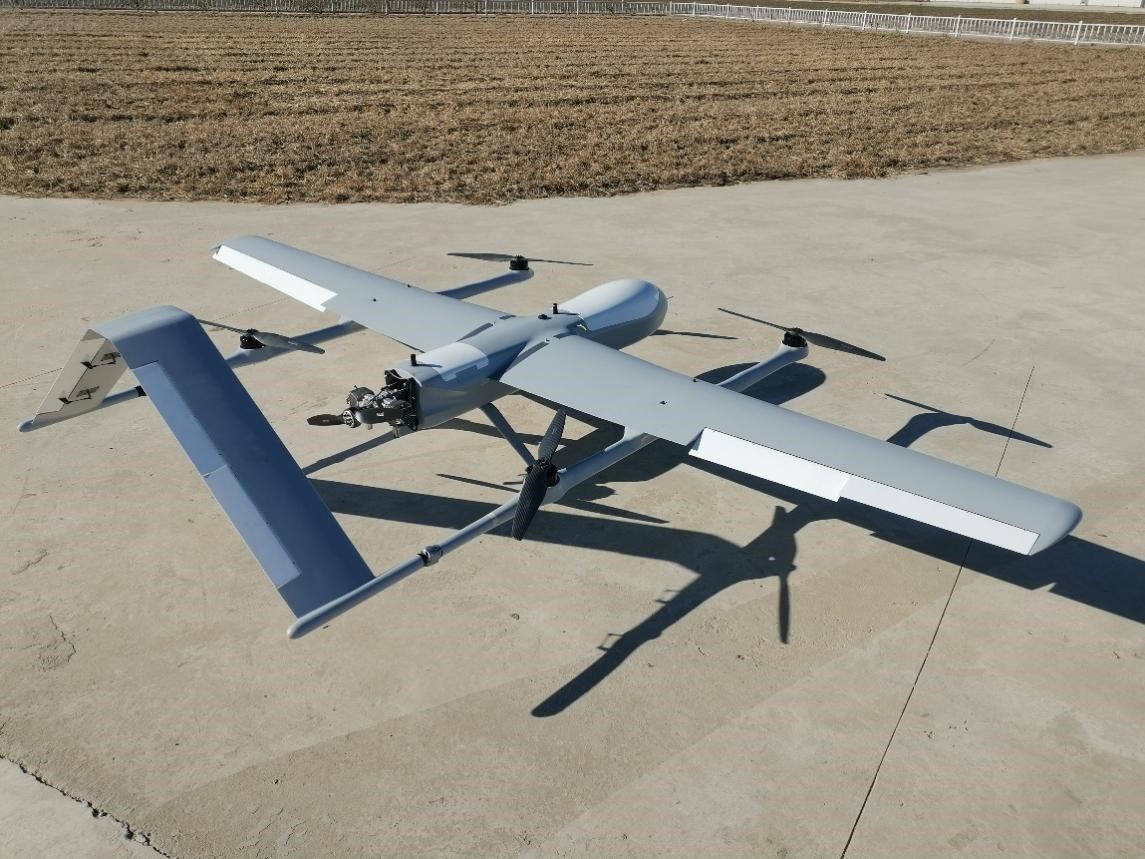

S130 Medium Vertical Take-off and Landing Drone System
The aircraft has a large wing area and a large payload, with a maximum load of up to 30kg.
â–²Advanced design
The S130 drone adopts a dual tail strut layout, a high lift to drag ratio airfoil, and an inverted V-shaped tail. The tail strut is designed with an takeoff and landing rotor system installed, with a simple and reliable structure;The body material is a carbon fiber honeycomb structure, and carbon fiber or Kevlar materials can be specially customized according to usage requirements;The front cabin designed specifically for large equipment has a larger capacity and higher load capacity;
â–²Strong load capacity
The aircraft has a large wing area and a large payload, with a maximum load of up to 30kg;
â–²Powerful engine
The main power is an oil powered internal combustion engine, which has sufficient power, stable and reliable operation, and is convenient to use. The fuel is 92 # gasoline, which is easy to obtain. The aircraft can also be equipped with a multi fuel engine, which can be used with diesel, aviation kerosene, and gasoline; The rotor power adopts a 100V high-voltage motor, which has a smaller current and higher power to weight ratio.
| Wingspan | 5.32m | Length | 2.95m |
| Full height | 1.5m | Maximum takeoff weight | 130Kg |
| Load weight | 30kg | Body material | Carbon fiber or fiberglass |
| Takeoff and landing mode | Four rotor vertical takeoff and landing | Cruise speed | 30m/s |
| Stall speed | 18m/s | Max climb rate | 3m/s |
| Maximum flight altitude | 5000m | Maximum level flight speed at sea level | 35m/s |
| Maximum battery life | 4h | Maximum wind resistance | Level 6 |
| Measurement and control task radius (under visibility conditions) | 10-70Km | Flight mode | Fully autonomous, manual |
| Navigation mode | GLONASS, BDS | Dynamic system | Two stroke internal combustion engine+electric starting |
| Fuel | 92 #, 95 # automotive gasoline (gasoline or electronic injection engines), or diesel, aviation kerosene (multi fuel engines) | Rotor battery | High voltage, high discharge rate ternary lithium battery |
| Weight | 100 kg |
|---|---|
| Dimensions | 295 × 532 × 150 cm |
