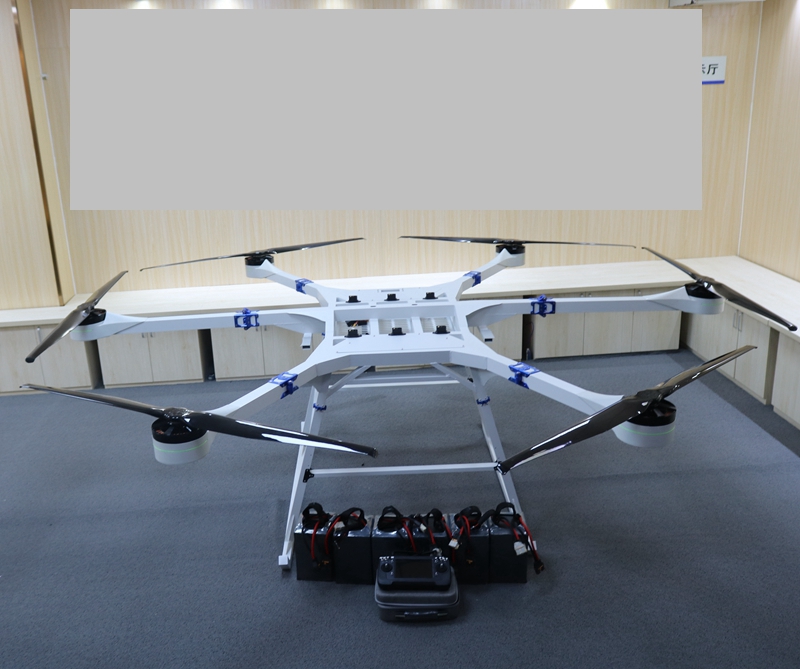

X100 Electric Six-rotor Lifting Drone

▲Advanced design

Symmetrical motor wheelbase:3150mm

Empty weight:51KG (Rack + Power + Flight Control)

Weight:140kg (Rack + Power + Flight Control + Battery)

Standard loads:   100KG

Standard take-off weight: 240KG

Full load battery life:25 min

Maximum flight altitude: 3000 m

Maximum ascent speed: 6m/s

Maximum descent speed: 1-3 m/s (which is adjustable)

Maximum horizontal flight speed:6-12m/s

Maximum pitch angle: 20°

Maximum angular velocity of rotation: Pitch axis: 90°/s，Heading Axis: 90°/s

Maximum Wind Speed: 10m/s

Operating temperature: -25℃~+55℃

Hover Accuracy: Vertical: ±0.5 m; level: ±1.5 m(When GPS positioning is working normally)

Lithium battery: 96S



▲Drone Dimensions:

Unfolded Dimensions:3340*2850*1112 MM

Folded Dimensions:1710*1695*1112 MM



▲Dynamical system:

Motor: EA190

ESC: EP-100A-HV+  96S

Propeller: UF6298   62-inch straight paddle

Lithium battery: 16S66AH*6 (6 groups in series)
